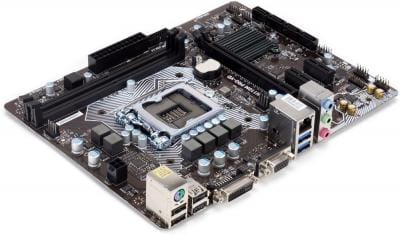

Mainboard MSI H110M PRO-VD còn bảo hành hảng

Hãng sản xuất

MSI

Chủng loại

MSI H110M PRO-VD

CPU hỗ trợ

Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151

Chipset

Intel H110 Express Chipset

Bộ nhớ trong

• 2 x DDR4 memory slots, support up to 32GB

– Supports DDR4 2133 MHz

• Dual channel memory architecture

• Supports Non-ECC, un-buffered memory

• Supports Intel Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs

* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel chipset limitation

Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz

Âm thanh

• Realtek ALC887 Codec

• 7.1-Channel High Definition Audio

Mạng

• 1 x Realtek RTL8111H Gigabit LAN controller

Khe mở rộng

• 1 x PCIe 3.0 x16 slot

• 2 x PCIe 2.0 x1 slots

Chuẩn lưu trữ

Intel H110 Chipset

• 4 x SATA 6Gb/s ports

Cổng giao tiếp trước và sau

– 1 x PS/2 keyboard/ mouse port

– 4 x USB 2.0 ports

– 2 x USB 3.1 Gen1 ports

– 1 x DVI-D port

– 1 x VGA port

– 1 x LAN (RJ45) port

– 3 x audio jacks

USB

• Intel H110 Chipset

– 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)

– 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Kích thước

9.3 in. x 7.1 in. (23.5 cm x 18.0 cm) Micro-ATX Form Factor
