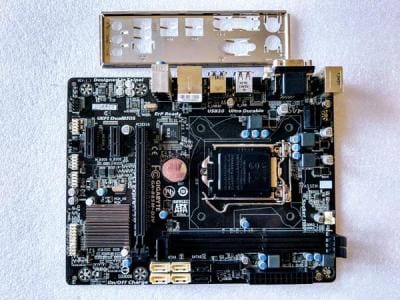

Gigabyte B85M-D2V lựa chọn cho game

Nhận trao đổi main Hư – lấy main chạy : Main hư thu mua 100k/cái

• Thông số kỷ thuật :
• CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. Intel® B85 Express Chipset
• Bộ nhớ
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Card đồ họa tích hợp
  Integrated Graphics Processor – Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200
     * The DVI-D port does not support D-Sub connection by adapter.
  3. Maximum shared memory of 1 GB
• Âm thanh
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
     (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slot
     (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Giao diện lưu trữ
  Chipset:

  1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)
  2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5)
• USB
  Chipset:

  1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x serial port header
  12. 1 x Clear CMOS jumper
• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In, Line Out, Mic In)
• Điều khiển I/O
  1. iTE® I/O Controller Chip
• Theo dõi phần cứng
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
     * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
     @BIOS
     EasyTune
     EZ Setup
     USB Blocker
     Smart TimeLock
     Smart Recovery 2
  4. Support for ON/OFF Charge
