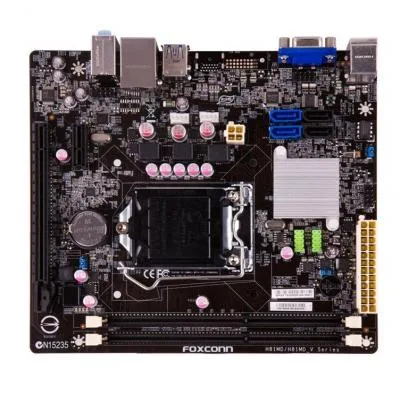

Foxconn H81MD (Socket LGA1150 VGA onboard)

Processor

• Supports LGA 1150 for 4th/5th Generation Intel® Coretm processors
• Max 84W
Notes:Please check our CPU compatibility table for full details

Chipset

Intel® H81 Chipset

Front Side Bus

Memory

2* dual-channel 1600MHz DDRIII slots, up to 16GB

VGA on Die

Intel® HD Graphics, support VGA display interface

Expansion Slots

1* PCIe x16 slot
1* PCIe x1 slot

IDE

Serial ATA(SATA)/RAID

2* SATAIII , 2* SATAII

Audio

5.1channel HD Audio

LAN

Realtek GigaLan

IEEE1394

Back Panel I/O Ports

1x PS2 keyboard port
1x PS2 mouse port
1x VGA port
1x RJ45 port
2x USB 2.0 ports
2x USB 3.0 ports
1x 3-port audio jacks

Internal I/O Connectors

1x 24-Pin ATX power conn
1x 4-pin ATX 12V power conn
1x 4-pin CPU FAN header
1x 4-pin System FAN header
1x Front pannel header
1x Front Audio header
1x CLR_CMOS header
2x SATA3 CONN
2x SATA2 CONN
2x USB2.0 headers
1x Speaker

BIOS Features

64Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0

Support CD

Drivers, Adobe Reader, SuperUtilities, Norton Internet Security

Standards/Manageability

Special Features

Form Factor

7.5 inch x 6.75 inch
